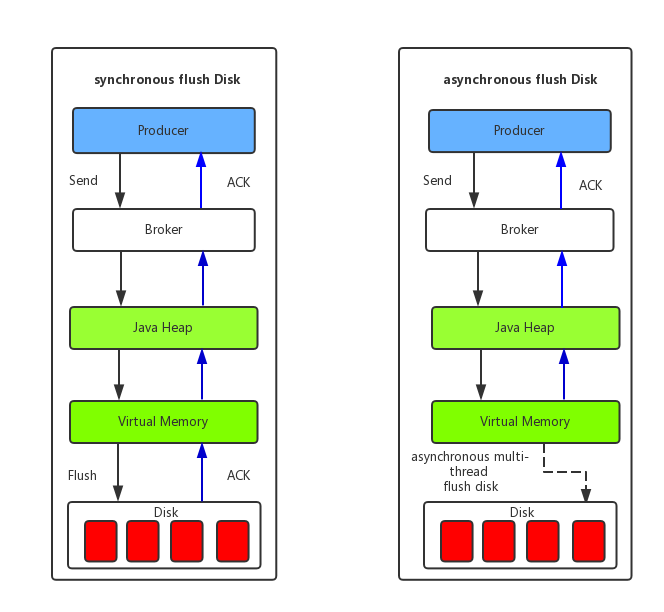

接消息存储后，Broker会调用 handleDiskFlush 进行刷盘，其中刷盘分为同步刷盘和异步刷盘
(1) 同步刷盘：如上图所示，只有在消息真正持久化至磁盘后RocketMQ的Broker端才会真正返回给Producer端一个成功的ACK响应。同步刷盘对MQ消息可靠性来说是一种不错的保障，但是性能上会有较大影响，一般适用于金融业务应用该模式较多。
(2) 异步刷盘：能够充分利用OS的PageCache的优势，只要消息写入PageCache即可将成功的ACK返回给Producer端。消息刷盘采用后台异步线程提交的方式进行，降低了读写延迟，提高了MQ的性能和吞吐量。
下面就从 handleDiskFlush 进行分析
public void handleDiskFlush(AppendMessageResult result, PutMessageResult putMessageResult, MessageExt messageExt) {
// Synchronization flush 同步刷盘
if (FlushDiskType.SYNC_FLUSH == this.defaultMessageStore.getMessageStoreConfig().getFlushDiskType()) {
final GroupCommitService service = (GroupCommitService) this.flushCommitLogService;
if (messageExt.isWaitStoreMsgOK()) {
// result.getWroteOffset() + result.getWroteBytes() 获得下一个offset
GroupCommitRequest request = new GroupCommitRequest(result.getWroteOffset() + result.getWroteBytes());
// 将GroupCommitRequest添加到requestsWrite这个List中
service.putRequest(request);
boolean flushOK = request.waitForFlush(this.defaultMessageStore.getMessageStoreConfig().getSyncFlushTimeout());
if (!flushOK) {
log.error("do groupcommit, wait for flush failed, topic: " + messageExt.getTopic() + " tags: " + messageExt.getTags()
+ " client address: " + messageExt.getBornHostString());
putMessageResult.setPutMessageStatus(PutMessageStatus.FLUSH_DISK_TIMEOUT);
}
} else {
service.wakeup();
}
}
// Asynchronous flush 异步刷盘
else {
if (!this.defaultMessageStore.getMessageStoreConfig().isTransientStorePoolEnable()) {
flushCommitLogService.wakeup();
} else {
commitLogService.wakeup();
}
}
}同步和异步，同步刷盘由GroupCommitService实现，异步刷盘由FlushRealTimeService实现，默认采用异步刷盘
在采用异步刷盘的模式下，若是开启内存字节缓冲区，那么会在FlushRealTimeService的基础上开启CommitRealTimeService
GroupCommitService
class GroupCommitService extends FlushCommitLogService {
private volatile List<GroupCommitRequest> requestsWrite = new ArrayList<GroupCommitRequest>();
private volatile List<GroupCommitRequest> requestsRead = new ArrayList<GroupCommitRequest>();
public synchronized void putRequest(final GroupCommitRequest request) {
// 在完成List的add操作后，会通过CAS操作修改hasNotified这个原子化的Boolean值
// 同时通过waitPoint的countDown进行唤醒操作，在后面会有用
synchronized (this.requestsWrite) {
this.requestsWrite.add(request);
}
if (hasNotified.compareAndSet(false, true)) {
waitPoint.countDown(); // notify
}
}
private void swapRequests() {
List<GroupCommitRequest> tmp = this.requestsWrite;
this.requestsWrite = this.requestsRead;
this.requestsRead = tmp;
}
private void doCommit() {
synchronized (this.requestsRead) {
if (!this.requestsRead.isEmpty()) {
// 遍历 requestsRead 表
for (GroupCommitRequest req : this.requestsRead) {
// There may be a message in the next file, so a maximum of
// two times the flush
boolean flushOK = false;
for (int i = 0; i < 2 && !flushOK; i++) {
// 如果 getFlushedWhere 大于 getNextOffset，说明已经刷过盘了，不用再刷
flushOK = CommitLog.this.mappedFileQueue.getFlushedWhere() >= req.getNextOffset();
if (!flushOK) {
CommitLog.this.mappedFileQueue.flush(0);
}
}
// 唤醒线程
req.wakeupCustomer(flushOK);
}
long storeTimestamp = CommitLog.this.mappedFileQueue.getStoreTimestamp();
if (storeTimestamp > 0) {
CommitLog.this.defaultMessageStore.getStoreCheckpoint().setPhysicMsgTimestamp(storeTimestamp);
}
this.requestsRead.clear();
} else {
// Because of individual messages is set to not sync flush, it
// will come to this process
CommitLog.this.mappedFileQueue.flush(0);
}
}
}
public void run() {
CommitLog.log.info(this.getServiceName() + " service started");
while (!this.isStopped()) {
try {
this.waitForRunning(10);
// 不停 doCommit
this.doCommit();
} catch (Exception e) {
CommitLog.log.warn(this.getServiceName() + " service has exception. ", e);
}
}
// Under normal circumstances shutdown, wait for the arrival of the
// request, and then flush
try {
Thread.sleep(10);
} catch (InterruptedException e) {
CommitLog.log.warn("GroupCommitService Exception, ", e);
}
synchronized (this) {
this.swapRequests();
}
this.doCommit();
CommitLog.log.info(this.getServiceName() + " service end");
}
@Override
protected void onWaitEnd() {
this.swapRequests();
}
@Override
public String getServiceName() {
return GroupCommitService.class.getSimpleName();
}
@Override
public long getJointime() {
return 1000 * 60 * 5;
}
}下面看看 flush 方法
public boolean flush(final int flushLeastPages) {
boolean result = true;
// 根据flushedWhere，通过findMappedFileByOffset获取要刷新的文件映射MappedFile
MappedFile mappedFile = this.findMappedFileByOffset(this.flushedWhere, this.flushedWhere == 0);
if (mappedFile != null) {
long tmpTimeStamp = mappedFile.getStoreTimestamp();
int offset = mappedFile.flush(flushLeastPages);
long where = mappedFile.getFileFromOffset() + offset;
result = where == this.flushedWhere;
this.flushedWhere = where;
if (0 == flushLeastPages) {
this.storeTimestamp = tmpTimeStamp;
}
}
return result;
}
public int flush(final int flushLeastPages) {
if (this.isAbleToFlush(flushLeastPages)) {
// 加锁
if (this.hold()) {
int value = getReadPosition();
try {
//We only append data to fileChannel or mappedByteBuffer, never both.
// 只会给 fileChannel 或 mappedByteBuffer 加数据，不会同时force
if (writeBuffer != null || this.fileChannel.position() != 0) {
this.fileChannel.force(false);
} else {
this.mappedByteBuffer.force();
}
} catch (Throwable e) {
log.error("Error occurred when force data to disk.", e);
}
// 设置flushedPosition的值
this.flushedPosition.set(value);
this.release();
} else {
log.warn("in flush, hold failed, flush offset = " + this.flushedPosition.get());
this.flushedPosition.set(getReadPosition());
}
}
return this.getFlushedPosition();
}
private boolean isAbleToFlush(final int flushLeastPages) {
int flush = this.flushedPosition.get();
int write = getReadPosition();
// 如果 fileSize == this.wrotePosition.get() 文件已经刷完了
if (this.isFull()) {
return true;
}
// 同步刷盘 所以 flushLeastPages = 0，只要有缓存就刷盘
// 如果是异步刷盘，flushLeastPages = 4，说明只有当缓存的消息至少是4（page个数）*4K（page大小）= 16K时，异步刷盘才会将缓存写入文件
if (flushLeastPages > 0) {
return ((write / OS_PAGE_SIZE) - (flush / OS_PAGE_SIZE)) >= flushLeastPages;
}
// 当需要刷盘的位置 > flush 说明有盘可刷
return write > flush;
}
同步刷盘分析结束，当requestsRead里所有数据都刷盘后，回到 doCommit 方法后会调用req.wakeupCustomer(flushOK);唤醒等待的waitForFlush的线程。
下面分析异步刷盘
class FlushRealTimeService extends FlushCommitLogService {
private long lastFlushTimestamp = 0;
private long printTimes = 0;
public void run() {
CommitLog.log.info(this.getServiceName() + " service started");
while (!this.isStopped()) {
// 是否使用定时刷盘 默认关闭
boolean flushCommitLogTimed = CommitLog.this.defaultMessageStore.getMessageStoreConfig().isFlushCommitLogTimed();
// 刷盘时间间隔，默认500ms
int interval = CommitLog.this.defaultMessageStore.getMessageStoreConfig().getFlushIntervalCommitLog();
// page大小，默认4个
int flushPhysicQueueLeastPages = CommitLog.this.defaultMessageStore.getMessageStoreConfig().getFlushCommitLogLeastPages();
// 彻底刷盘时间间隔，默认10s
int flushPhysicQueueThoroughInterval =
CommitLog.this.defaultMessageStore.getMessageStoreConfig().getFlushCommitLogThoroughInterval();
boolean printFlushProgress = false;
// Print flush progress
long currentTimeMillis = System.currentTimeMillis();
// 如果当前时间大于 上次刷盘时间+刷盘间隔 （即应该刷盘），则设定刷盘时间为当前
if (currentTimeMillis >= (this.lastFlushTimestamp + flushPhysicQueueThoroughInterval)) {
this.lastFlushTimestamp = currentTimeMillis;
flushPhysicQueueLeastPages = 0;
// 每10次打印一次刷盘进度
printFlushProgress = (printTimes++ % 10) == 0;
}
try {
// 当flushCommitLogTimed为true，使用sleep等待500ms
if (flushCommitLogTimed) {
Thread.sleep(interval);
} else {
//当flushCommitLogTimed为false，调用waitForRunning在超时时间为500ms下阻塞
// 其唤醒条件也就是在handleDiskFlush中的wakeup唤醒，就是在文章开头handleFlush中的wakeup
this.waitForRunning(interval);
}
if (printFlushProgress) {
this.printFlushProgress();
}
long begin = System.currentTimeMillis();
// 后面逻辑和同步一样
CommitLog.this.mappedFileQueue.flush(flushPhysicQueueLeastPages);
long storeTimestamp = CommitLog.this.mappedFileQueue.getStoreTimestamp();
if (storeTimestamp > 0) {
CommitLog.this.defaultMessageStore.getStoreCheckpoint().setPhysicMsgTimestamp(storeTimestamp);
}
long past = System.currentTimeMillis() - begin;
if (past > 500) {
log.info("Flush data to disk costs {} ms", past);
}
} catch (Throwable e) {
CommitLog.log.warn(this.getServiceName() + " service has exception. ", e);
this.printFlushProgress();
}
}
// Normal shutdown, to ensure that all the flush before exit
boolean result = false;
for (int i = 0; i < RETRY_TIMES_OVER && !result; i++) {
result = CommitLog.this.mappedFileQueue.flush(0);
CommitLog.log.info(this.getServiceName() + " service shutdown, retry " + (i + 1) + " times " + (result ? "OK" : "Not OK"));
}
this.printFlushProgress();
CommitLog.log.info(this.getServiceName() + " service end");
}
@Override
public String getServiceName() {
return FlushRealTimeService.class.getSimpleName();
}
private void printFlushProgress() {
// CommitLog.log.info("how much disk fall behind memory, "
// + CommitLog.this.mappedFileQueue.howMuchFallBehind());
}
@Override
public long getJointime() {
return 1000 * 60 * 5;
}
}下面判断使用缓冲池的情况
abstract class FlushCommitLogService extends ServiceThread {
protected static final int RETRY_TIMES_OVER = 10;
}
class CommitRealTimeService extends FlushCommitLogService {
private long lastCommitTimestamp = 0;
@Override
public String getServiceName() {
return CommitRealTimeService.class.getSimpleName();
}
@Override
public void run() {
CommitLog.log.info(this.getServiceName() + " service started");
while (!this.isStopped()) {
// 提交时间间隔，默认200ms
int interval = CommitLog.this.defaultMessageStore.getMessageStoreConfig().getCommitIntervalCommitLog();
// page大小，默认4个
int commitDataLeastPages = CommitLog.this.defaultMessageStore.getMessageStoreConfig().getCommitCommitLogLeastPages();
// 提交完成时间间隔，默认200ms
int commitDataThoroughInterval =
CommitLog.this.defaultMessageStore.getMessageStoreConfig().getCommitCommitLogThoroughInterval();
long begin = System.currentTimeMillis();
if (begin >= (this.lastCommitTimestamp + commitDataThoroughInterval)) {
this.lastCommitTimestamp = begin;
commitDataLeastPages = 0;
}
try {
// 基本和FlushCommitLogService相似，只不过调用了mappedFileQueue的commit方法 参数为4
boolean result = CommitLog.this.mappedFileQueue.commit(commitDataLeastPages);
long end = System.currentTimeMillis();
if (!result) {
this.lastCommitTimestamp = end; // result = false means some data committed.
//now wake up flush thread.
flushCommitLogService.wakeup();
}
if (end - begin > 500) {
log.info("Commit data to file costs {} ms", end - begin);
}
this.waitForRunning(interval);
} catch (Throwable e) {
CommitLog.log.error(this.getServiceName() + " service has exception. ", e);
}
}
boolean result = false;
// 重试10次 成功则退出
for (int i = 0; i < RETRY_TIMES_OVER && !result; i++) {
result = CommitLog.this.mappedFileQueue.commit(0);
CommitLog.log.info(this.getServiceName() + " service shutdown, retry " + (i + 1) + " times " + (result ? "OK" : "Not OK"));
}
CommitLog.log.info(this.getServiceName() + " service end");
}
}
public boolean commit(final int commitLeastPages) {
boolean result = true;
MappedFile mappedFile = this.findMappedFileByOffset(this.committedWhere, this.committedWhere == 0);
if (mappedFile != null) {
int offset = mappedFile.commit(commitLeastPages);
long where = mappedFile.getFileFromOffset() + offset;
result = where == this.committedWhere;
this.committedWhere = where;
}
return result;
}
public int commit(final int commitLeastPages) {
if (writeBuffer == null) {
//no need to commit data to file channel, so just regard wrotePosition as committedPosition.
return this.wrotePosition.get();
}
if (this.isAbleToCommit(commitLeastPages)) {
if (this.hold()) {
commit0(commitLeastPages);
this.release();
} else {
log.warn("in commit, hold failed, commit offset = " + this.committedPosition.get());
}
}
// All dirty data has been committed to FileChannel.
if (writeBuffer != null && this.transientStorePool != null && this.fileSize == this.committedPosition.get()) {
this.transientStorePool.returnBuffer(writeBuffer);
this.writeBuffer = null;
}
return this.committedPosition.get();
}
protected void commit0(final int commitLeastPages) {
int writePos = this.wrotePosition.get();
int lastCommittedPosition = this.committedPosition.get();
if (writePos - this.committedPosition.get() > 0) {
try {
ByteBuffer byteBuffer = writeBuffer.slice();
byteBuffer.position(lastCommittedPosition);
byteBuffer.limit(writePos);
this.fileChannel.position(lastCommittedPosition);
this.fileChannel.write(byteBuffer);
this.committedPosition.set(writePos);
} catch (Throwable e) {
log.error("Error occurred when commit data to FileChannel.", e);
}
}
}
