dcmotor22

---

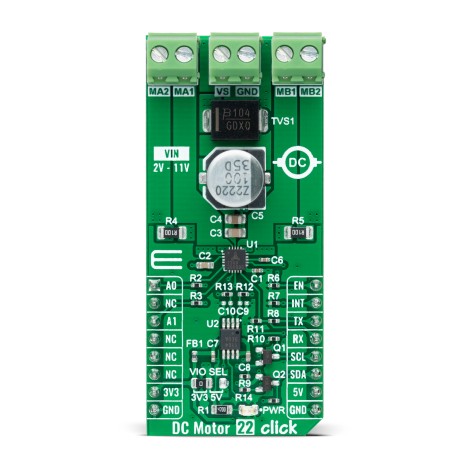

DC Motor 22 Click

DC Motor 22 Click demo application is developed using the NECTO Studio, ensuring compatibility with mikroSDK's open-source libraries and tools. Designed for plug-and-play implementation and testing, the demo is fully compatible with all development, starter, and mikromedia boards featuring a mikroBUS™ socket.

---

Click Library

• Author : Stefan Filipovic
• Date : Apr 2022.
• Type : UART type

Software Support

Example Description

This example demonstrates the use of DC Motor 22 Click board by controlling the speed of both motors over PWM duty cycle as well as displaying the motors current consumption.

Example Libraries

• MikroSDK.Board
• MikroSDK.Log
• Click.DCMotor22

Example Key Functions

• dcmotor22_cfg_setup Config Object Initialization function.

void dcmotor22_cfg_setup ( dcmotor22_cfg_t *cfg );

• dcmotor22_init Initialization function.

err_t dcmotor22_init ( dcmotor22_t *ctx, dcmotor22_cfg_t *cfg );

• dcmotor22_default_cfg Click Default Configuration function.

err_t dcmotor22_default_cfg ( dcmotor22_t *ctx );

• dcmotor22_set_motor_pwm This function sets the PWM duty cycle of the selected motor.

err_t dcmotor22_set_motor_pwm ( dcmotor22_t *ctx, uint8_t motor_sel, int16_t pwm_duty );

• dcmotor22_get_motor_current This function reads the current consumption of the selected motor.

err_t dcmotor22_get_motor_current ( dcmotor22_t *ctx, uint8_t motor_sel, float *current );

• dcmotor22_reset_device This function resets the device by toggling the EN pin state.

void dcmotor22_reset_device ( dcmotor22_t *ctx );

Application Init

Initializes the driver and performs the Click default configuration.

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    dcmotor22_cfg_t dcmotor22_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    dcmotor22_cfg_setup( &dcmotor22_cfg );
    DCMOTOR22_MAP_MIKROBUS( dcmotor22_cfg, MIKROBUS_POSITION_DCMOTOR22 );
    if ( UART_ERROR == dcmotor22_init( &dcmotor22, &dcmotor22_cfg ) )
    {
        log_error( &logger, " Communication init." );
        for ( ; ; );
    }

    if ( DCMOTOR22_ERROR == dcmotor22_default_cfg ( &dcmotor22 ) )
    {
        log_error( &logger, " Default configuration." );
        for ( ; ; );
    }

    log_info( &logger, " Application Task " );
}

Application Task

Controls the motor speed by changing the PWM duty cycle every 5 seconds, and displays the motors current consumption. The duty cycle ranges from -100% to +100%. Each step will be logged on the USB UART where you can track the program flow.

void application_task ( void )
{
    static int16_t pwm_duty = 0;
    static int8_t pwm_duty_step = 50;
    float current;
    log_printf ( &logger, " Motor A\r\n" );
    if ( DCMOTOR22_OK == dcmotor22_set_motor_pwm ( &dcmotor22, DCMOTOR22_MOTOR_A, pwm_duty ) )
    {
        log_printf ( &logger, " PWM duty: %d\r\n", pwm_duty );
    }
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    if ( DCMOTOR22_OK == dcmotor22_get_motor_current ( &dcmotor22, DCMOTOR22_MOTOR_A, &current ) )
    {
        log_printf ( &logger, " Current: %.3f A\r\n\n", current );
    }
    Delay_ms ( 500 );
    log_printf ( &logger, " Motor B\r\n" );
    if ( DCMOTOR22_OK == dcmotor22_set_motor_pwm ( &dcmotor22, DCMOTOR22_MOTOR_B, pwm_duty ) )
    {
        log_printf ( &logger, " PWM duty: %d\r\n", pwm_duty );
    }
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
    if ( DCMOTOR22_OK == dcmotor22_get_motor_current ( &dcmotor22, DCMOTOR22_MOTOR_B, &current ) )
    {
        log_printf ( &logger, " Current: %.3f A\r\n\n", current );
    }
    Delay_ms ( 500 );

    if ( ( ( pwm_duty + pwm_duty_step ) > DCMOTOR22_MAX_PWM ) || ( ( pwm_duty + pwm_duty_step ) < DCMOTOR22_MIN_PWM ) )
    {
        pwm_duty_step = -pwm_duty_step;
    }
    pwm_duty += pwm_duty_step;
}

Application Output

This Click board can be interfaced and monitored in two ways:

• Application Output - Use the "Application Output" window in Debug mode for real-time data monitoring. Set it up properly by following this tutorial.
• UART Terminal - Monitor data via the UART Terminal using a USB to UART converter. For detailed instructions, check out this tutorial.

Additional Notes and Information

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

---
