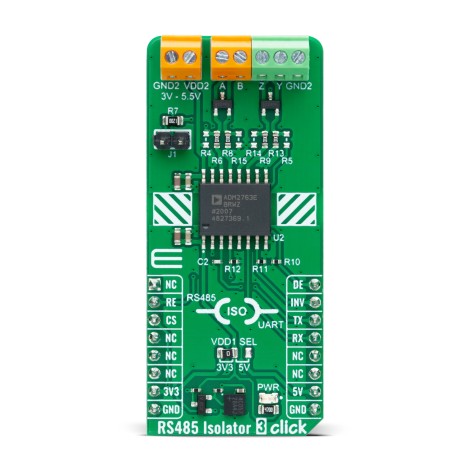

RS485 Isolator 3 Click

RS485 Isolator 3 Click demo application is developed using the NECTO Studio, ensuring compatibility with mikroSDK's open-source libraries and tools. Designed for plug-and-play implementation and testing, the demo is fully compatible with all development, starter, and mikromedia boards featuring a mikroBUS™ socket.

---

Click Library

• Author : Stefan Ilic
• Date : Mar 2023.
• Type : UART type

Software Support

Example Description

This example reads and processes data from RS485 Isolator 3 Clicks.

Example Libraries

• MikroSDK.Board
• MikroSDK.Log
• Click.RS485Isolator3

Example Key Functions

• rs485isolator3_cfg_setup Config Object Initialization function.

void rs485isolator3_cfg_setup ( rs485isolator3_cfg_t *cfg );

• rs485isolator3_init Initialization function.

err_t rs485isolator3_init ( rs485isolator3_t *ctx, rs485isolator3_cfg_t *cfg );

• rs485isolator3_default_cfg Click Default Configuration function.

void rs485isolator3_default_cfg ( rs485isolator3_t *ctx );

• rs485isolator3_enable_receiver_input RS485 Isolator 3 enable receiver input function.

void rs485isolator3_enable_receiver_input ( rs485isolator3_t *ctx );

• rs485isolator3_disable_receiver_input RS485 Isolator 3 disable receiver input function.

void rs485isolator3_disable_receiver_input ( rs485isolator3_t *ctx );

• rs485isolator3_disable_output RS485 Isolator 3 disable output function.

void rs485isolator3_disable_output ( rs485isolator3_t *ctx );

Application Init

Initializes the driver and enables the selected mode.

void application_init ( void )
{
    log_cfg_t log_cfg;  /**< Logger config object. */
    rs485isolator3_cfg_t rs485isolator3_cfg;  /**< Click config object. */

    /**
     * Logger initialization.
     * Default baud rate: 115200
     * Default log level: LOG_LEVEL_DEBUG
     * @note If USB_UART_RX and USB_UART_TX
     * are defined as HAL_PIN_NC, you will
     * need to define them manually for log to work.
     * See @b LOG_MAP_USB_UART macro definition for detailed explanation.
     */
    LOG_MAP_USB_UART( log_cfg );
    log_init( &logger, &log_cfg );
    log_info( &logger, " Application Init " );

    // Click initialization.
    rs485isolator3_cfg_setup( &rs485isolator3_cfg );
    RS485ISOLATOR3_MAP_MIKROBUS( rs485isolator3_cfg, MIKROBUS_POSITION_RS485ISOLATOR3 );
    if ( UART_ERROR == rs485isolator3_init( &rs485isolator3, &rs485isolator3_cfg ) )
    {
        log_error( &logger, " Communication init." );
        for ( ; ; );
    }

    rs485isolator3_default_cfg ( &rs485isolator3 );

#ifdef DEMO_APP_RECEIVER
    rs485isolator3_enable_receiver_input( &rs485isolator3 );
    rs485isolator3_disable_output( &rs485isolator3 );
    log_info( &logger, "---- Receiver mode ----" );
#endif
#ifdef DEMO_APP_TRANSMITTER
    rs485isolator3_disable_receiver_input( &rs485isolator3 );
    rs485isolator3_enable_output( &rs485isolator3 );
    log_info( &logger, "---- Transmitter mode ----" );
#endif

    log_info( &logger, " Application Task " );
    Delay_ms ( 100 );
}

Application Task

Depending on the selected mode, it reads all the received data or sends the desired message every 2 seconds.

void application_task ( void )
{
#ifdef DEMO_APP_RECEIVER
    rs485isolator3_process( );
#endif

#ifdef DEMO_APP_TRANSMITTER
    rs485isolator3_generic_write( &rs485isolator3, data_buf, strlen( data_buf ) );
    log_info( &logger, "---- Data sent ----" );
    Delay_ms ( 1000 );
    Delay_ms ( 1000 );
#endif

}

Application Output

This Click board can be interfaced and monitored in two ways:

• Application Output - Use the "Application Output" window in Debug mode for real-time data monitoring. Set it up properly by following this tutorial.
• UART Terminal - Monitor data via the UART Terminal using a USB to UART converter. For detailed instructions, check out this tutorial.

Additional Notes and Information

The complete application code and a ready-to-use project are available through the NECTO Studio Package Manager for direct installation in the NECTO Studio. The application code can also be found on the MIKROE GitHub account.

---
