Add Support Aqara Outlet EU version lumi.plug.maeu01

[aleksandrdobrynin]

Please add support for lumi.plug.maeu01.

[aleksandrdobrynin]

The socket is added to homekit via homebridge and a low battery warning is displayed there.

[SwoopX]

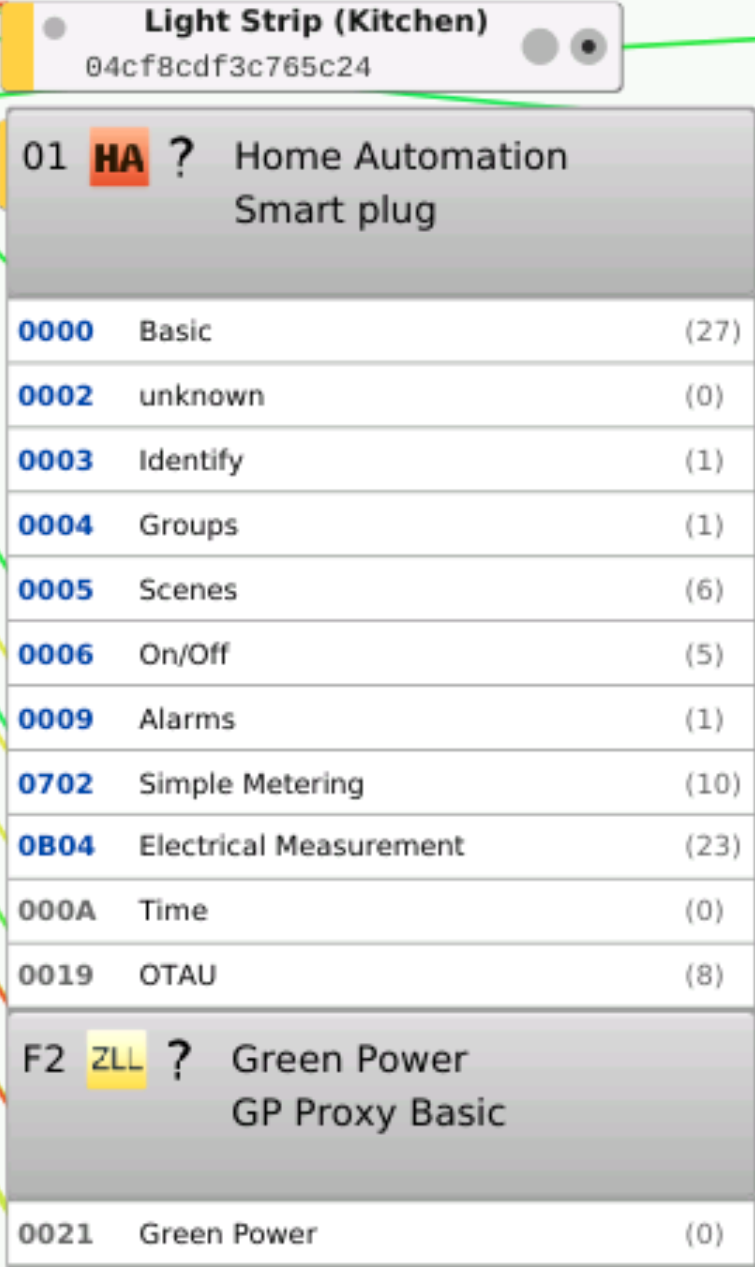

Can you also please provide a screenshot of the node info panel? Also, please for the simple metering and electrical measurement cluster (after the attributes have been read).

Nice to see that it is running on Zigbee 3. How much was it?

[aleksandrdobrynin]

[aleksandrdobrynin]

[SwoopX]

Hey, is the device working now with the latest deconz version? Would be glad if you could also provide a screenshot of the simple metering cluster while the attributes have been read. Thanks!

[aleksandrdobrynin]

Yes, the device on the latest firmware works fine. But when forwarding through Homebridge to HomeKit, a low battery level is displayed.

[SwoopX]

I see, thanks for highlighting. Found some code inconsistencies which are addressed by a new pull request.

Hello there,

I've been trying to keep up with the integration of this plug since I recently purchased one, but I don't seem to find a definitive answer.

Was this implemented in 2.05.75 or it's just now making it though the pipeline?

I can read the temperature, power and voltage from the deconz gui, but it doesn't seem to send that info anywhere (ie. my home assistant).

[SwoopX]

I see integration done as I haven't heard differently. All included in .75 release. Which version do you run?

[aleksandrdobrynin]

I migrate to z2m )

Very weird. Home assistant and domoticz both see it as a switch. So it's not them. I can turn it on and off and that's it.
I am on latest everything

The API sent from deconz is not sending any info.

[SwoopX]

That's normal, what are you missing? Consumption and power is under sensors in the API.

Missing both consumption and power. I re-installed and re-added and debugged for the last 2 days.
Nothing under sensors.

Lights for proof it's still there

[SwoopX]

Try the following with the sensor:

• Start sensor seach in Phoscon
• Read the basic cluster from deconz GUI

If that shouldn't change anything, you could try:

• Start sensor seach in Phoscon
• After like 10 secs, go to deconz GUI and set permit join to 0 (EDIT -> Permit Join)
• Now read the simple descriptors
