Device Support - WAXMAN LeakSMART v2

[jtscott]

Hello I am opening this issue to request device support for the LeakSmart Smart Home Sensor 2.0. This is a water leak sensor and I hope to provide as much info as I can:

• User Manual
• ZHA Device Handler

Device Screenshots



debug.txt

Please let me know if I can provide any addition information, and thank you for your support and consideration.

[SwoopX]

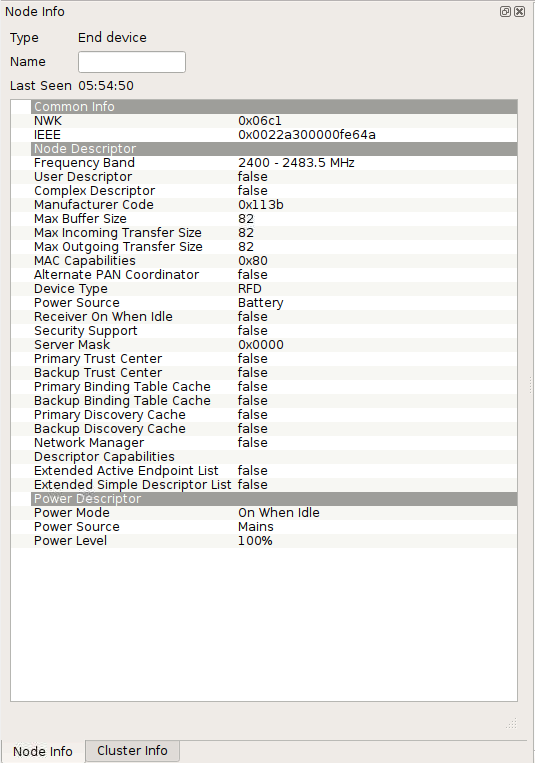

Please also provide a screenshot of the node itself from deconz GUI where you can see the available clusters. Thanks!

[jtscott]

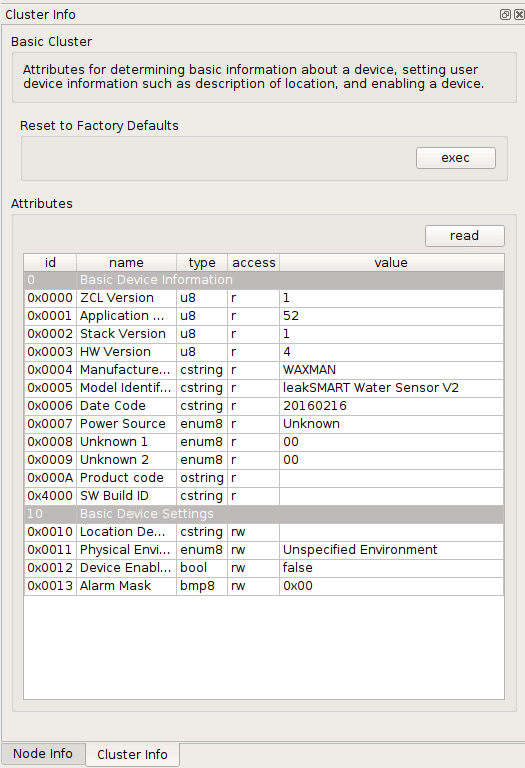

Sure, is this correct?

[SwoopX]

It is, thanks. I'll let you know it I need anything else.

That looks like a temperature sensor. Are you sure this is the right device?

[jtscott]

Yes, I removed and re-added the node to be sure. When I had it paired to my wink hub a year ago it provided both leak detection and temperature.

[SwoopX]

Hm, then it might be the unknown cluster. I'll check it out later.

[ebaauw]

Or a hidden IAS Zone cluster. Wouldn't be the first device to do that.

[SwoopX]

@jtscott Could you please also read the attributes from power configuration cluster and provide the screenshot? Wanna have the battery information right. Thanks!

[jtscott]

Sure thing; Here is what I am getting from it, it is updating the data from what I can see when I click read but not sure why the rest is grey. Device takes 3x AAA's physically:

Edit: Temperature cluster just for completeness sake

[SwoopX]

Hm, can you read to try battery percentage once again (by double clicking on it) The 2 values seem not to fit each other.

[jtscott]

This looks weird for sure! I clicked read a couple times and it comes back 200 and says "reading done". I tried to read config as well and it comes back as not_found. Same with voltage, reading at 46 and read config not_found.

[SwoopX]

It's just the "read" button. "read config" is to read the reporting configuration, which the device currently not has unless you did all the binding manually.

[jtscott]

No definitely outside my area of expertise there, I'm just capable of gui button clicks :) Reading still comes back 200:

[SwoopX]

Hm, that still feels a bit strange 3x1.5V is not 46 (or 4.6) ;) Also not sure if the 200 are usable. Brand new batteries maybe?

Regardless, I'd rather go for the voltage for the time being. We can change that later on if required.

[jtscott]

Yes had to add new batteries last week, as this thing chirps loud like a fire alarm when its low.

[SwoopX]

Ok, we go for the percentage then as it doesn't require for any changes then. Just please keep an eye on if, if it changes over time.
