HEIMAN RC-EM

[cllatser]

Device

• Product name: HEIMAN RC-EM
• Manufacturer: ETIGER
• Model identifier: RC-EM
• Device type:
  • Light
  • Lock
  • Remote
  • Sensor
  • Siren
  • Thermostat
  • Other: Remote Alarm

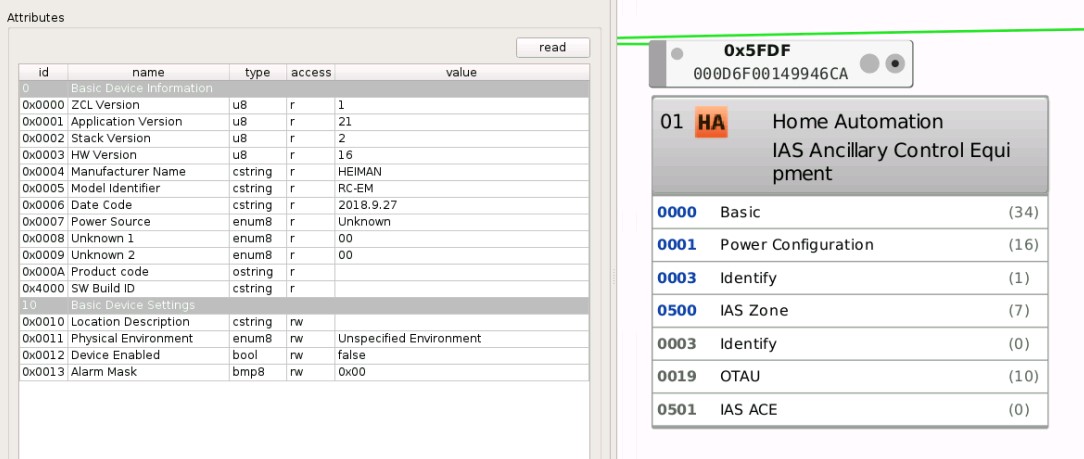

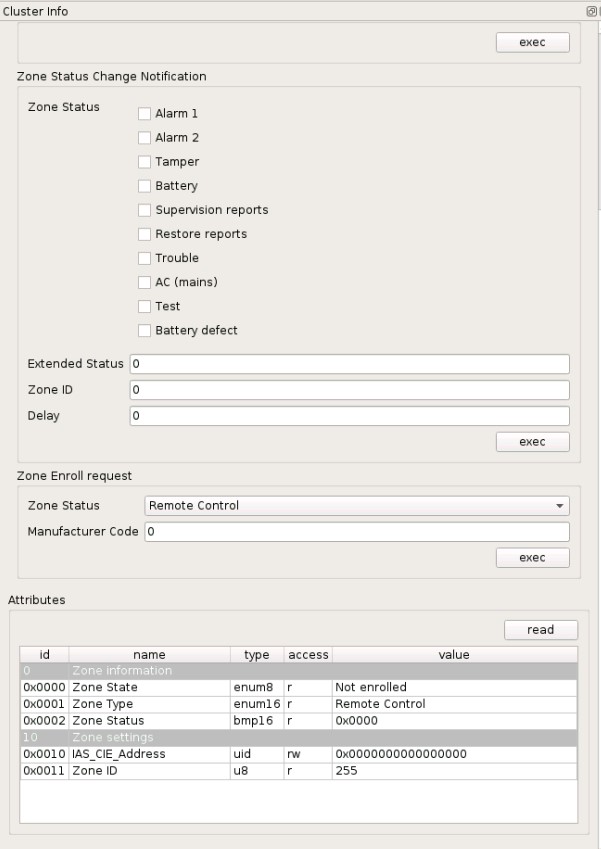

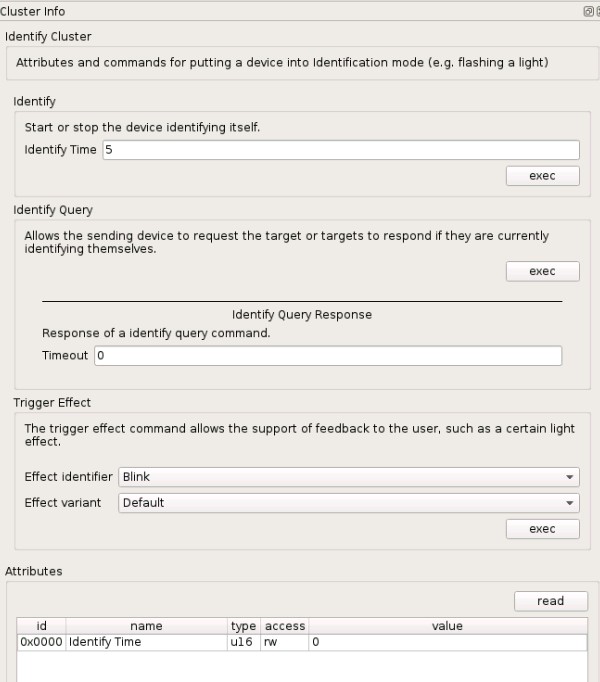

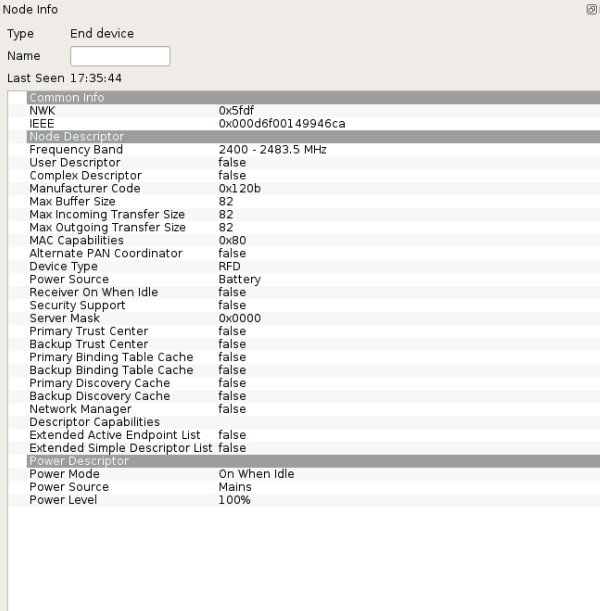

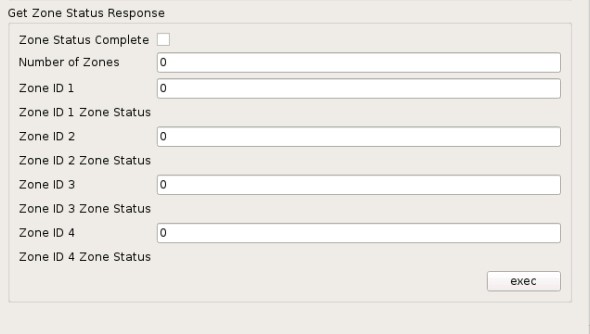

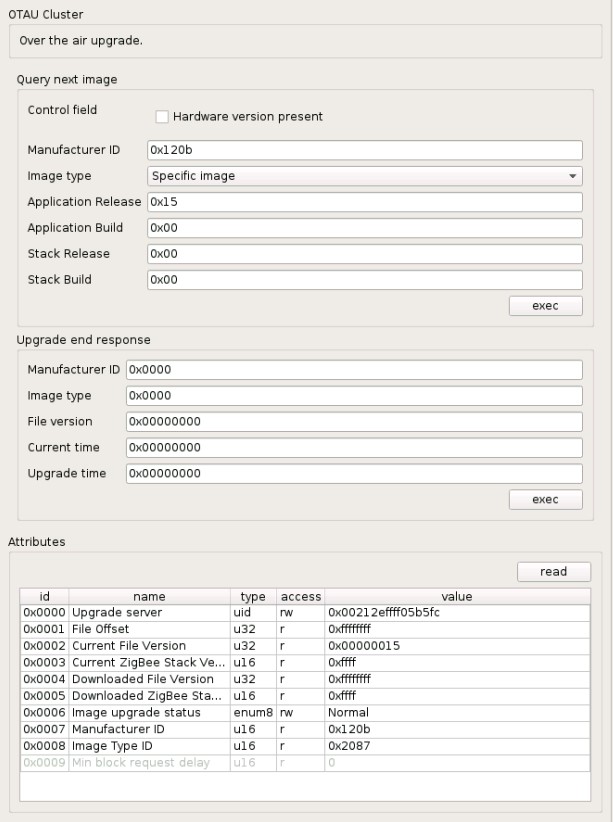

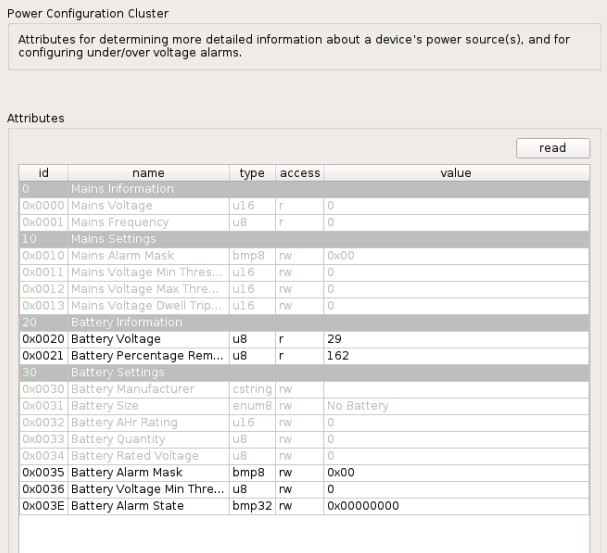

Screenshots

[SwoopX]

You are aware that this no regular remote but for steering security gateways? And it will especially not work if deconz or your middleware goes down.

[cllatser]

Yes I know, I have a small flat. I don't need high security. I started recently and now I have everything connected to the Conbee II. I bought this because the seller's website sold it as the Heiman RS1RC. I did not want to put an RF bridge. Thank you very much.

https://es.aliexpress.com/item/32975159931.html?spm=a2g0s.9042311.0.0.501e63c0274yWo

Note: I have all the sensors connected directly to the Conbee II and the Conbee II to the Rpi4 and the Rpi4 and router lte to the UPS, so I would just go without an alarm if the Rsi4 failed :)

[SwoopX]

What do you plan to do with it anyway?

[cllatser]

Simply that each button has an event. And then I in Node-red will assign them to the control panel.

[SwoopX]

Alright, just wanted to set expectations correctly. Hope it works the same way as the other remote...

[cllatser]

You will make me happy. Thank you very much.

[SwoopX]

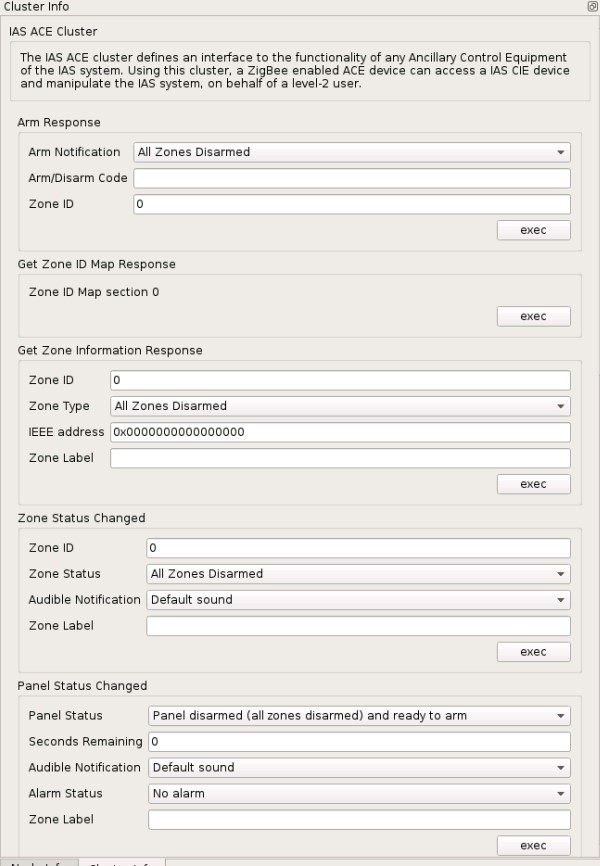

For the remote to properly join, the coordinator has to be extended by "IAS ACE" cluster manually in deconz GUI. For that, go to Edit -> Network settings -> Endpoints (or press F9 -> Endpoints) and add 0x0501 to the in clusters of endpoint 0x01.

After successful join, the device should send IAS ACE commands on all its buttons as below:

Top button: Arm Mode - Arm Day/Home Zones Only -> translates to 1001
Right button: Arm Mode - Disarm -> translates to 2001
Bottom button: Command - Emergency -> translates to 3001
Left button: Arm Mode: Arm All -Zones -> translates to 4001

[cllatser]

Hello, I was away from home. I already tried before opening this incident the cluster 0x0501 and it did not send me any event. Do I have to wait for an update?

[SwoopX]

yes, what else?

[cllatser]

Excuse my English. I have already put the 0x0501 in "in clusters". I have paired the controller with Phoscon as a switch. But I see neither in HA nor in Node-Red any control event. Do I have to wait for the next version of deconz or would it already have to work? Thank you very much.

[SwoopX]

I have updated the codebase to handle it in future. That has not yet been merged and a new version hasn't been released. The comment I added is just a set of prerequisites and explains what to expect.

[cllatser]

Thank you very much. :)
